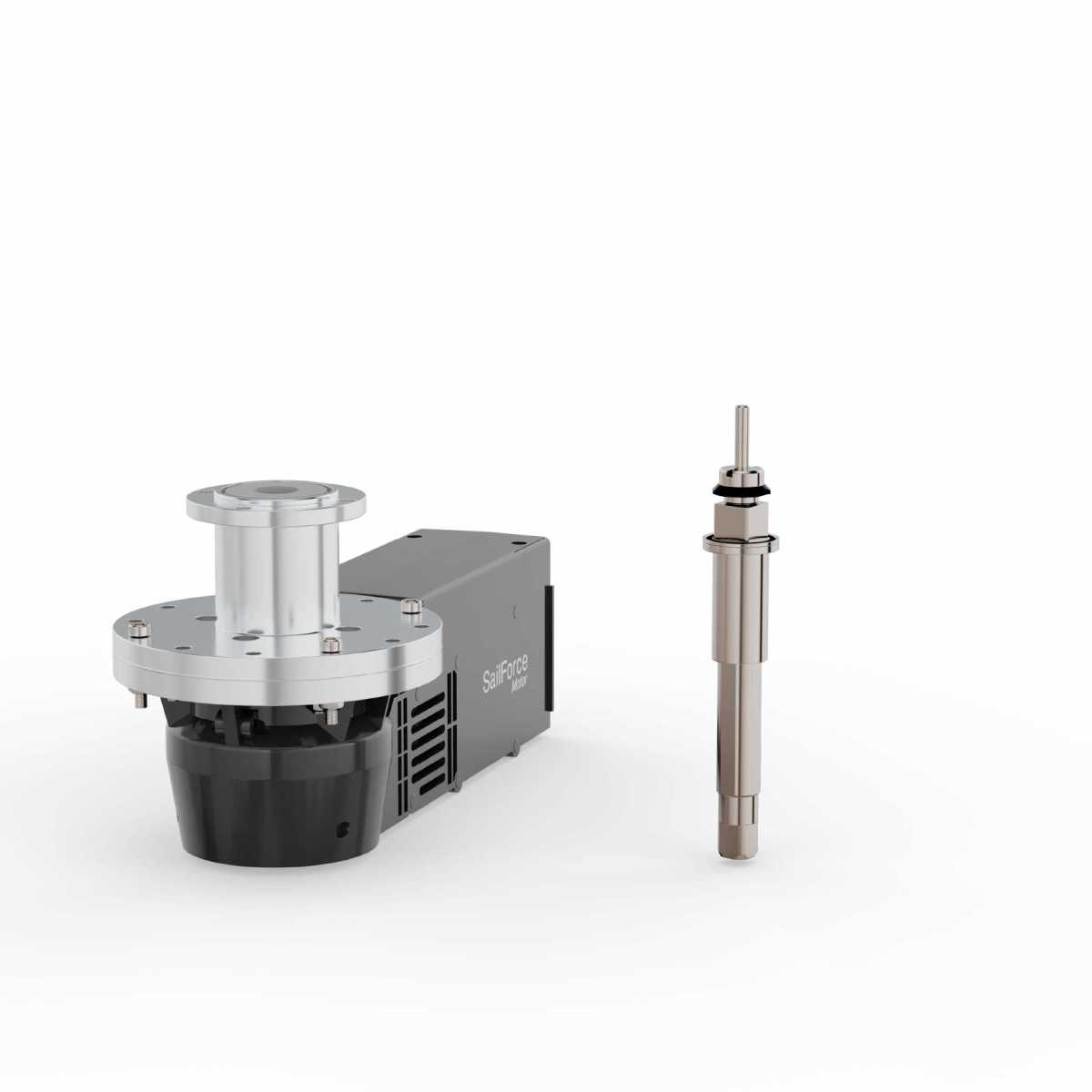

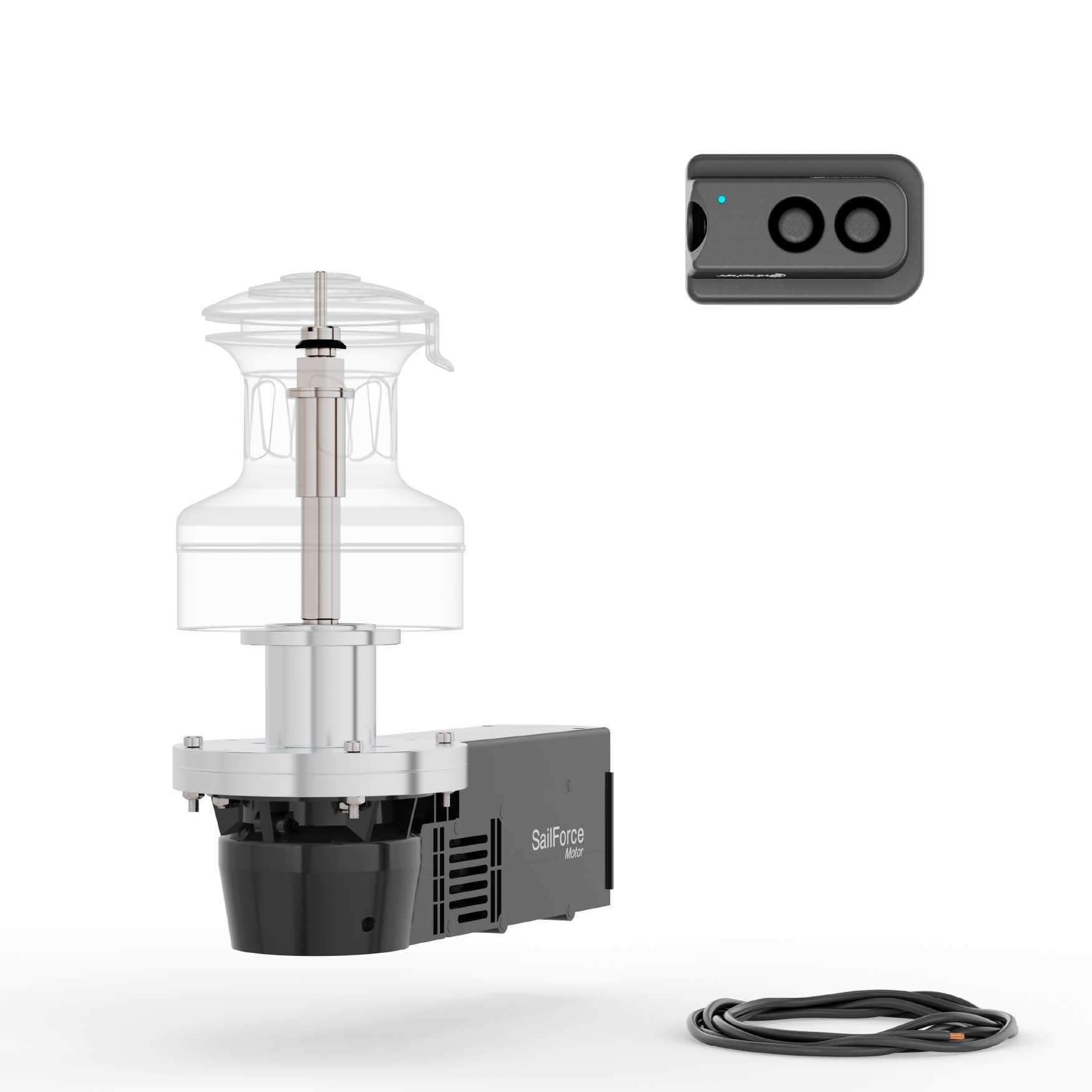

SailForce™ conversion kit
The SailForce™ motor is now available for converting different brands and sizes of winches to electric. Transform your manual winches into electric winches and enjoy the technological advantages of SailForce™ !
Discover the SailForce™ motor
SailForce™ electrification kits compatible with Harken winches * are available for sale in all countries, except for the following, where they are not available for sale under any circumstances :
France, Italy, Germany, United Kingdom.
Exclusive launch deal !
Enjoy a 16% to 20% discount on the launch of our electric winch conversion kit.
COMPATIBILITY NOTICE
HARKEN® is a registered trademark owned by Harken, Inc. HUTTON® is a registered trademark owned by THE AUSTRALIAN YACHT WINCH PTY. LTD. Brand names are used for compatibility reference only and are the property of their respective owners. SailForce™ electrification kits compatible with HARKEN® and HUTTON® winches are third-party accessories, not manufactured by, approved or affiliated with these brands.
SailForce™ electrification kits compatible with Harken® winches are available for sale in all countries except the following, where they are not available for sale under any circumstances: France, Italy, Germany, and the United Kingdom.

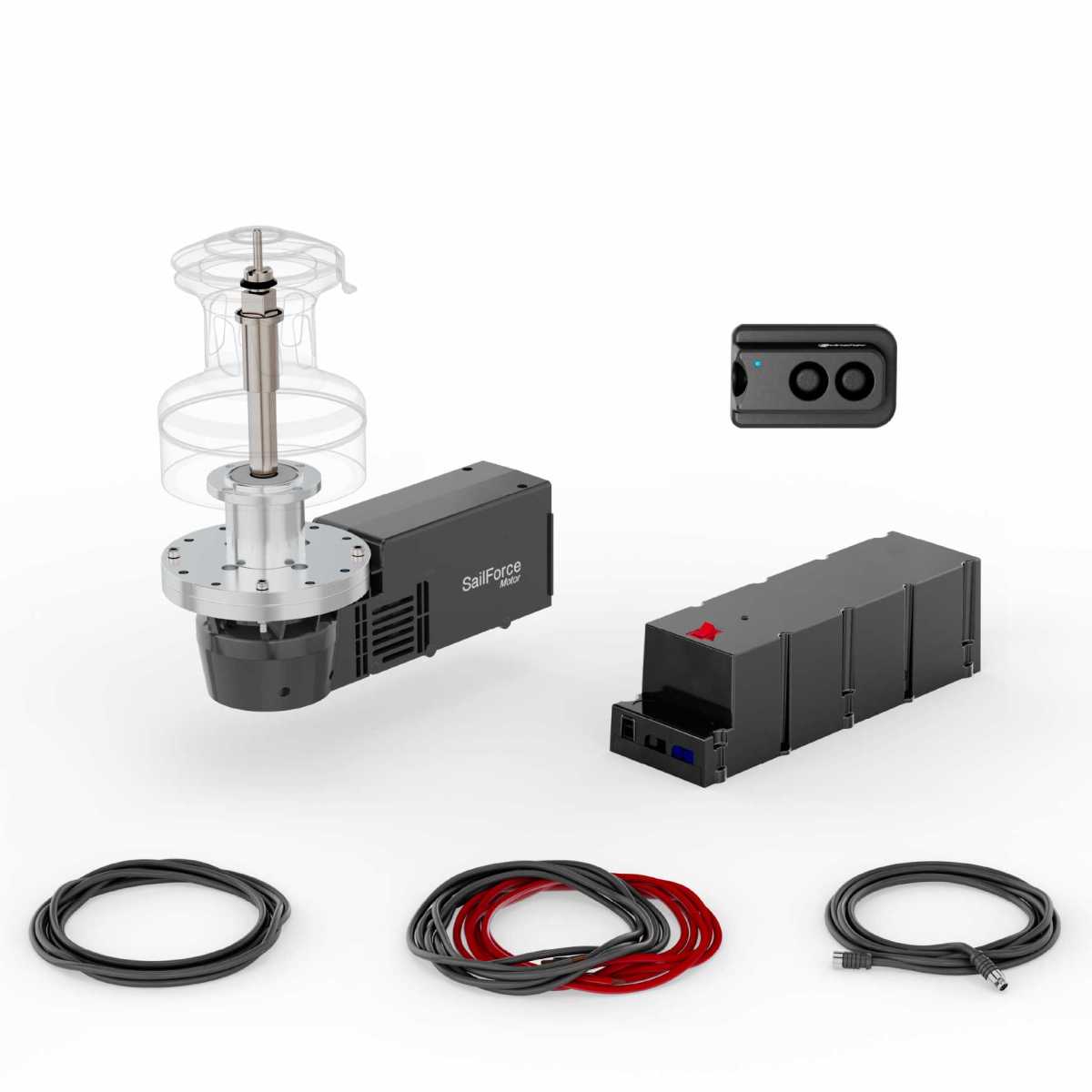

All-Inclusive Offer
Everything you need for installation is included : central shaft, SailForce motor, battery (for SailForce 1) or control box (for SailForce 2), control unit(s) and cabling. Nothing else to buy.
Specifications :
Select your winch model (to be motorized with SailForce™) to view specifications * :
Select a motor model to view specifications
SailForce 1
SailForce 2
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
75 Nm
Maximum line load
750 kg
Maximum line speed
19 m/min
Minimum line speed
0.85 m/min
(1.4 cm/sec)
(1.4 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 35 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
75 Nm
Maximum line load
850 kg
Maximum line speed
19 m/min
Minimum line speed
0.8 m/min
(1.33 cm/sec)
(1.33 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 40 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
82 Nm
Maximum line load
1070 kg
Maximum line speed
22 m/min
Minimum line speed
0.6 m/min
(1 cm/sec)
(1 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 46 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
82 Nm
Maximum line load
1160 kg
Maximum line speed
23 m/min
Minimum line speed
1.2 m/min
(2 cm/sec)
(2 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 50 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 2
Technology
Outrunner brushless motor
Weight
2.7 kg
Torque
103 Nm
Maximum line load
1160 kg
Maximum line speed
23 m/min
Minimum line speed
1.2 m/min
(2 cm/sec)
(2 cm/sec)
Electrical input power*
1500 W
Motor efficiency*
75%
Useful output power*
1125 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 50 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 2
Technology
Outrunner brushless motor
Weight
2.7 kg
Torque
105 Nm
Maximum line load
1800 kg
Maximum line speed
17 m/min
Minimum line speed
1 m/min
(1.67 cm/sec)
(1.67 cm/sec)
Electrical input power*
1500 W
Motor efficiency*
75%
Useful output power*
1125 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 60 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 2
Technology
Outrunner brushless motor
Weight
2.7 kg
Torque
120 Nm
Maximum line load
2430 kg
Maximum line speed
13 m/min
Minimum line speed
0.85 m/min
(1.4 cm/sec)
(1.4 cm/sec)
Electrical input power*
1500 W
Motor efficiency*
75%
Useful output power*
1125 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Harken winch size 70 - Radial or Performa model
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
82 Nm
Maximum line load
860 kg
Maximum line speed
18 m/min
Minimum line speed
0.8 m/min
(1.33 cm/sec)
(1.33 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Hutton winch size 40
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
82 Nm
Maximum line load
970 kg
Maximum line speed
19 m/min
Minimum line speed
0.7 m/min
(1.15 cm/sec)
(1.15 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Hutton winch size 45
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 1
Technology
Outrunner brushless motor
Weight
2.6 kg
Torque
82 Nm
Maximum line load
1120 kg
Maximum line speed
17.5 m/min
Minimum line speed
1.2 m/min
(2 cm/sec)
(2 cm/sec)
Electrical input power*
1250 W
Motor efficiency*
72%
Useful output power*
900 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Hutton winch size 52
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
SailForce motor
SailForce motor
Model
SailForce 2
Technology
Outrunner brushless motor
Weight
2.7 kg
Torque
110 Nm
Maximum line load
1500 kg
Maximum line speed
24 m/min
Minimum line speed
1.2 m/min
(2 cm/sec)
(2 cm/sec)
Electrical input power*
1500 W
Motor efficiency*
75%
Useful output power*
1125 W
* Some competitors advertise higher wattage, but our tests show their brushed motors run at <35% efficiency—so a 2000 W electrical input means <700 W out at the winch. SailForce converts more of your energy into real pulling power, with less consumption.
Central shaft
Compatible with Hutton winch size 57
Material
17.4 PH Stainless steel
Easy installation : simply replace your winch's existing central shaft with the one supplied in the conversion kit. The new shaft enables motorization by connecting your manual winch to the SailForce motor.
Performance
Performance
Performance
Performance
Performance
Performance
Performance
Performance
Performance
Performance
Performance
SailForce battery
SailForce battery
Includes lithium battery and charger.
Input current
12V, 24V or 48V DC
Battery capacity
144 Wh
Nominal voltage
28.8V DC
Operating voltage
(while charging) 33.6V DC
(while charging) 33.6V DC
Weight
2kg
SailForce battery to service battery cable
Length
4 meters
Section
2x 2.5mm²
Motor to SailForce battery cable
Three options : 2.5 meters (2x 6mm²) or 5 meters (2x10mm²) or 8 meters (2x 16mm²)

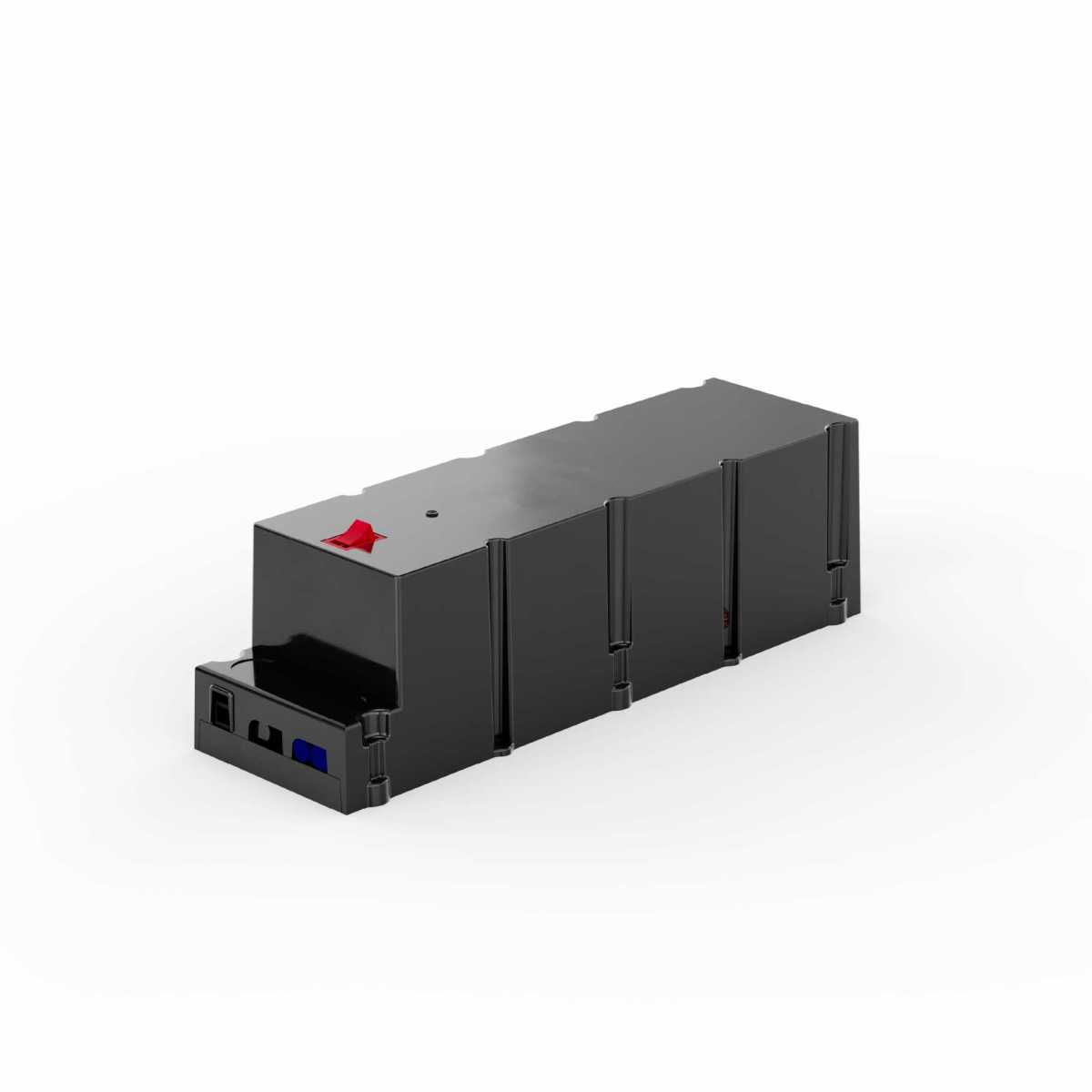

SailForce control box
SailForce control box
Includes motherboard, lithium battery and charger.
Input current
12V, 24V or 48V DC
Battery capacity
216 Wh
Nominal voltage
36V DC
Operating voltage
(while charging) 42V DC
(while charging) 42V DC
Weight
3.3kg
Control box to service battery cable
12V input voltage
2 meters
Ø7mm (2x2.5mm²)
Ø7mm (2x2.5mm²)
24V or 48V
input voltage 4 meters
Ø7mm (2x2.5mm²)
input voltage 4 meters
Ø7mm (2x2.5mm²)
Motor to control box cable
Length
3.5 meters
Section
Ø12mm (3x4mm²)
Control unit(s)
Select a control unit option to view specifications :

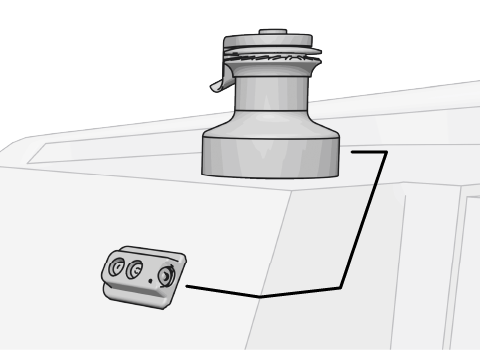

Essential command

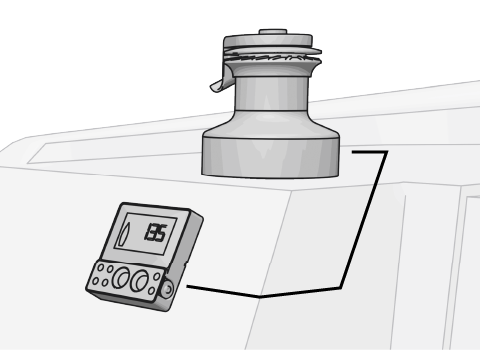

Advanced command

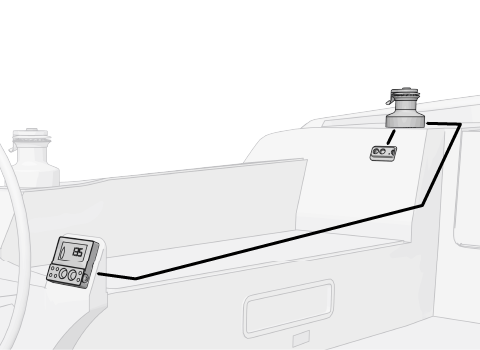

Full command
Included cable(s)
The speed 1 of the
winch is motorized
and variable.
The speed 2 of the
winch is motorized
and variable.
Tension limiter
Configurable from
the mobile app
Configurable from
the control unit
Real-time tension
monitoring
Allows control of the
winch from two
separate locations
on the deck.
